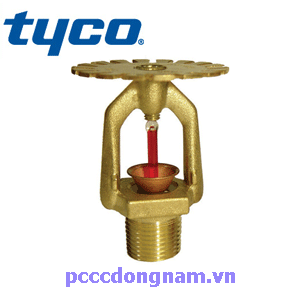

1146 Tyco Upright Sprinkler Head
TY-FS Special VdS; CEA 4001; EN12845; LBCP K= 57 LPM/bar½ Quick Response Quick Response Holine : 0917911114
The Tyco Flat Sprinkler Head Ti 1146 belongs to the TY-FS Special series of special nozzles with a special response to the injection flow rate K=57 LPM/bar½. The TY1146 is designed flat against standard nozzles, allowing them to be used with lower clearances above open ceilings and store shelves in accordance with CEA 4001.
Nozzle-Sprinkler-Tyco-Flat-Upright-Tyco-1146
Description of the 1146 . Tyco Upright Sprinkler Head
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 57 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Glass tube size: 4mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions.
- Plating material: copper
You will receive a quote from us as soon as possible..
